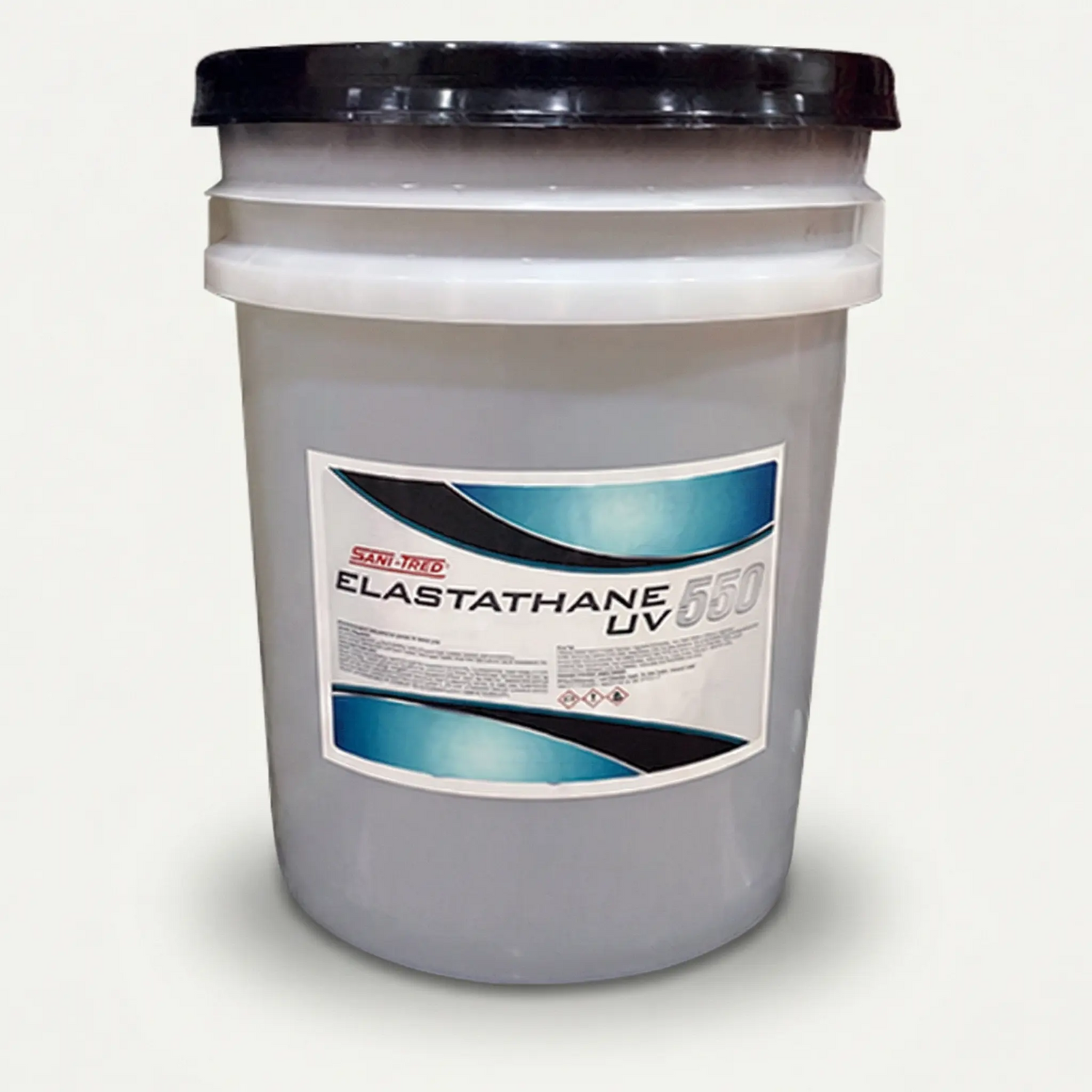

Elastathane UV 550 5gal

The binder behind TCP's ElastaStone system. ElastaThane UV 550 is a 100% solids, single-component aliphatic binder designed for rubber, SBR, and EPDM granule installations where UV stability is non-negotiable. Mixed with EPDM rubber granules, it cures into a resilient safety surface that holds up to heavy use, outdoor exposure, and freeze-thaw cycling without breaking down.

Aliphatic chemistry means it won't yellow in the sun — the surface stays true to color long-term. Can also be applied as a topcoat to restore luster to an existing ElastaStone surface. No color shift when mixed with black EPDM rubber.

The 550% elongation rating allows the cured surface to flex with the substrate rather than crack, making it well-suited for outdoor installations where ground movement is a factor.

Mix Ratios:

• Priming: 1 part ElastaThane UV 550 to 1 part solvent
• Binding rubber: 1 part ElastaThane UV 550 to 4 parts rubber granules (by weight)

Physical Properties:

• Solids: 100% by weight and volume
• Viscosity: 3,000 ± 500 cps
• Tensile strength: 4,000 ± 300 psi
• Ultimate elongation: 550 ± 50%
• Tear resistance: 450 ± 50 pli

Packaging: 5 gallon

Compatible with: Rubber, SBR, and EPDM granules; various rock aggregates.

Application:

• Primer coat: Apply with a 3/8" nap roller
• Rubber binding: Apply with a screed box and thickness gauge or metal trowel

Storage: Keep container sealed after opening. Optimal storage temperature is 77–95°F (25–35°C).

Product Documentation

• Technical Bulletin for ElastaThane UV
• Technical Data Sheet for Elastathane UV 550
• Safety Data Sheet for Elastathane UV 550
• Safety Data Sheet for Elastathane UV
