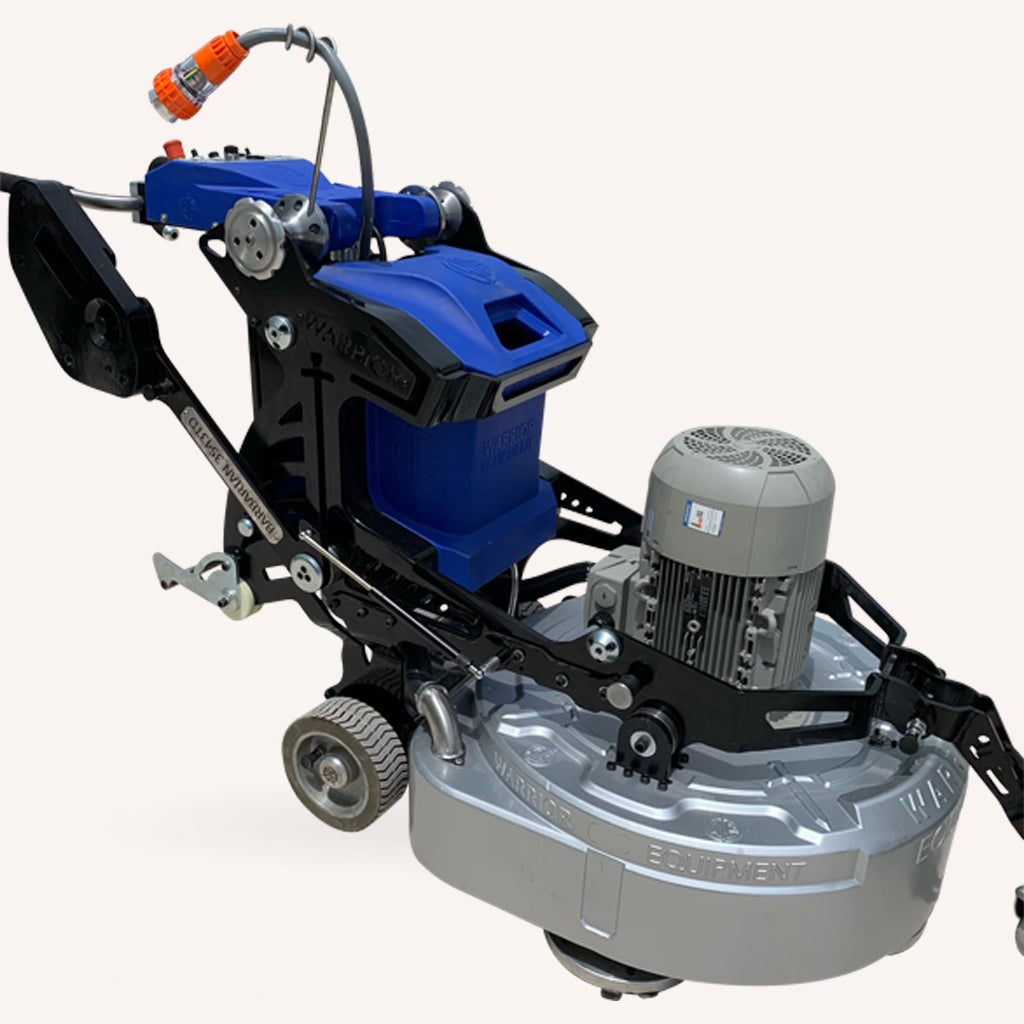

Warrior Barbarian 3543TD - 25HP Traction Drive Grinder

The Concrete Protector's Warrior Barbarian 3543TD is a fully gear-driven, four-head planetary concrete grinder equipped with traction drive for enhanced productivity and operator safety. This powerhouse delivers 25HP of grinding performance with an impressive 35.43" working width for maximum coverage on large commercial and industrial floor projects. The traction drive system provides self-propelled movement, reducing operator fatigue during extended grinding sessions. With adjustable head pressure ranging from 705 to 992 lbs and variable RPM from 300 to 1,200, the Barbarian TD handles everything from aggressive coating removal to fine concrete polishing. Backed by a 10-year warranty with We Care Extended Warranty available.

Specifications:

• Model: Barbarian 3543TD
• Heads: 4-Head Planetary (Gear-Driven)
• Drive System: Traction Drive
• Working Width: 35.43" (900mm)
• Weight: 1,650 lbs
• Horsepower: 25 HP
• Voltage: 480V
• Phase: 3 Phase Only
• Head Pressure: 705-992 lbs (adjustable)
• RPM/Rotation: 300-1,200 (150 REV)
• Color: Blue

Key Benefits:

• Traction drive for self-propelled operation
• 25HP gear-driven 4-head planetary system
• 35.43" working width for maximum productivity
• Adjustable head pressure (705-992 lbs)
• Variable speed 300-1,200 RPM
• 10-year warranty
• We Care Extended Warranty available

Recommended Applications:

• Concrete surface preparation
• Concrete coating removal
• Carpet and tile glue removal
• Concrete polishing
• Large commercial and industrial floors

Limitations:

• 3 phase power only (480V)
• Must be equipped with Warrior Equipment tooling before use

How to Use:

1. Refer to the Owner's Manual for operating and safety instructions

Product Documentation:

• Technical Data Sheet for Barbarian 3543TD
